BSR-TR01B

OverviewSpecificationsTypical ApplicationsPictures

Add to Favorite

Email to

Download

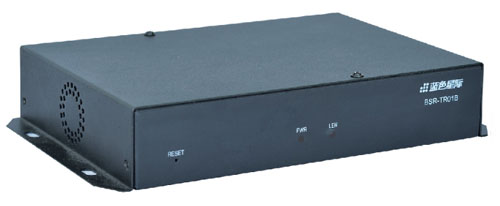

Product Type
HD Network Video Decoder

Product Model
BSR-TR01B

Key Features
•HD standalone network video decoder for TV wall monitoring system
•High performance processor, high stability
•Support video and audio synchronization decoding output
•HDMI output
•Alarm input/output
•Support multiple resolution decoding: CIF/HD1/D1/720P/1080P

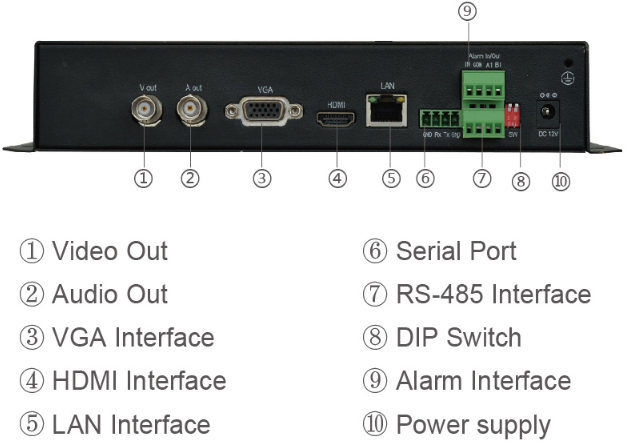

Rear Panel

Product Model		BSR-TR01B
Video	Interface	1HDMI, 1VGA,1*BNC
	Display Split	1/4/6/8/9/16
	Decoding Ability	4-Ch 1080P; 9-Ch 720P; 9-Ch 960H; 16-Ch D1
	Compression	H.264(Baseline/Main/High Profile), MPEG-4
	Code Rate	64K—8Mbps
	Decoding Resolution	1080P/720P/960H/D1/CIF
Audio	Output	1-Ch BNC
Audio	Compression	G.726, G.722, G.711
Alarm	Input	1-Ch
Alarm	Output	1-Ch
Interface		1RS232, 1RS485
Network	Interface	1*RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Network	Protocol	TCP, RTP, UDP, DHCP Etc.
	Dimension	250mm(L)44mm(H)170mm(D)
	Weight	≤1200g
	Power	DC 12V
General	Consumption	Max. 12W
	Battery Life	≥3 years
	Temperature	-10°to +55°C
	Humidity	≤90%

Suitable for multi-channel audio video surveillance for high quality video image recording, such as teller counter surveillance, urban traffic, highways, shopping malls, supermarkets, hotels, residential areas, warehouses, airports, stations and so on.
