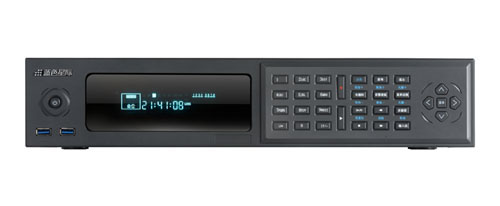

BSR-HR7100N

OverviewSpecificationsTypical ApplicationsPictures

Add to Favorite

Email to

Download

Product Model
BSR-HR7104N BSR-HR7108N BSR-HR7116N

Key Features
•H.264 Video Compression
•Third-party network cameras supported
•HDMI and VGA output up to 1920X1080 resolution
•Up to 5MP resolution recording
•8 SATA HDD interface up to 4TB each
•Dual stream playback
•HDD quota and group management

Parameter/Model	BSR-HR7104N	BSR-HR7108N	BSR-HR7116N
Video/Audio Input
Analog Input	4-Ch	8-Ch	16-Ch
IP Input	4-8 Ch	8-16 Ch	4-32 Ch
Audio Input	4- Ch	8-Ch	16-Ch
Video/Audio Output
Live View/ Playback	5MP / 3MP / 1080P / 720P / VGA / 4CIF / DCIF / 2CIF/ CIF / QCIF
Frame Rate	PAL: 1-25fps, NTSC:1-30fps
HDMI/VGA Output	1-Ch resolution: 1024x768/1280x720/1280x1024/1366x768/1440x900/1920x1080
CVBS Output	1-ch, BNC(1.0Vp-p, 75Ω) Resolution: 704×576(PAL); 704×480(NTSC)
Audio Output	1-Ch BNC; 1-Ch HDMI
Synchronous Playback	Up to 8-Ch	Up to 16-Ch	Up to 16-Ch
Dual Stream	Support
Hard Disk
SATA	8 SATA interfaces for 8 HDDS
Capability	Up to 4TB for each disk
External Interface
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB Interface	3*USB 2.0
PTZ Control	2 RS485
Communication	1 RS232
Alarm In/out	6-Ch input/2-Ch output	16-Ch input/4-Ch output	16-Ch input/4-Ch output
Video Intercom	1-Ch BNC in; 1-Ch BNC out
General
Power Supply	100-240V
Consumption	≤31W(Without hard disk)
Working Temperature	-10℃-- 55℃
Working Humidity	10%--90%
Dimensions(WDH)	44042588(mm) 2U Chassis
Weight	7Kg(Without hard disk)

Applies to high request for image quality monitoring sites such as solution for bank counter, also suitable for city traffic, shopping mall, supermarket, hotel, airport and station, etc.
